whoami

Filipe Fernandes

• Physical Oceanographer
• Data Plumber
• Code Janitor
• CI babysitter
• Amazon-Dash-Button for conda-forge

Previous talks: standards

https://www.youtube.com/watch?v=BV30Sk1CrM0

Previous talks: ocean models

https://www.youtube.com/watch?v=WHjU_rg81BI

IOOS

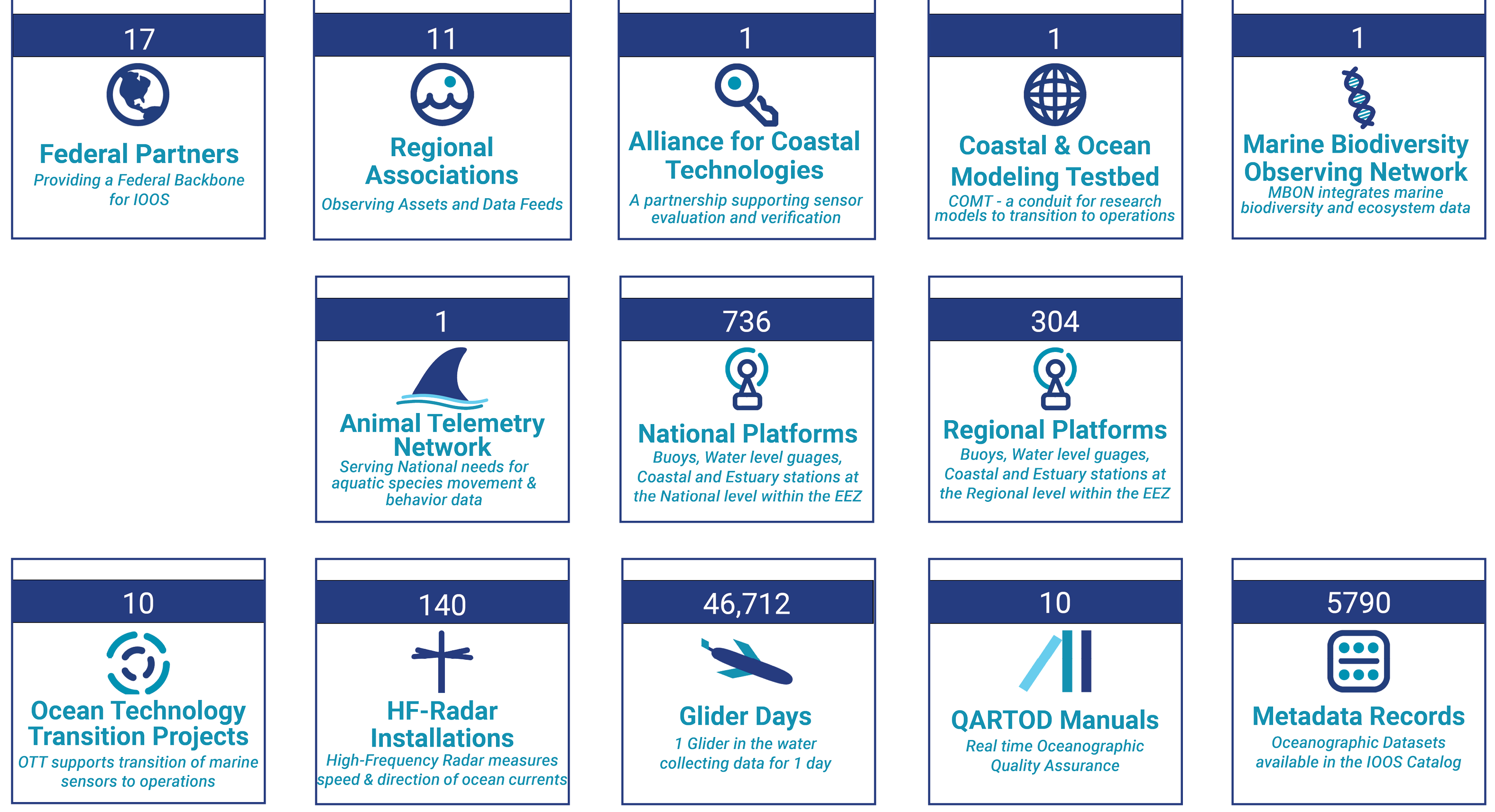

IOOS numbers

Code gallery

http://ioos.github.io/notebooks_demos/code_gallery

Standards

• avoid customer-specific solutions
• the standardizations happen at the data providers

IOOS Web Services

Sensor Observation Service

(OGC SOS)

• GetCapabilities: metadata
• DescribeSensor: detail info on the instruments
• GetObservation: the data

SOS example

url = (
    'https://opendap.co-ops.nos.noaa.gov/ioos-dif-sos/SOS?'
    'service=SOS'
    '&request=GetObservation'
    '&version=1.0.0'
    '&observedProperty=water_surface_height_above_reference'
    '&offering=urn:ioos:station:NOAA.NOS.CO-OPS:8454000'
    '&responseFormat=text/csv'
    '&eventTime=2018-07-04T00:00:00Z/2018-07-05T00:00:00Z'
    '&result=VerticalDatum==urn:ogc:def:datum:epsg::5103'
    '&dataType=PreliminarySixMinute'
)

If we add Python to it

url = (
    f'https://opendap.co-ops.nos.noaa.gov/ioos-dif-sos/SOS?'
    f'service=SOS&request={request}'
    f'&version={version}'
    f'&observedProperty={variable}'
    f'&offering=urn:ioos:station:NOAA.NOS.CO-OPS:8454000'
    f'&responseFormat={response}'
    f'&eventTime={yesterday:%Y-%m-%dT%H:%M:%SZ}/'
    f'{today:%Y-%m-%dT%H:%M:%SZ}'
    f'&result=VerticalDatum=={vdatum}'
    f'&dataType={data_type}'
)

OPeNDAP/Climate and Forecast

(CF)

CF - Metadata

float temp(ocean_time, s_rho, eta_rho, xi_rho);
    temp:standard_name = "sea_water_potential_temperature"
    temp:units = "Celsius";
    temp:coordinates = "lon_rho lat_rho s_rho ocean_time";
double s_rho(s_rho);
    s_rho:long_name = "S-coordinate at RHO-points";
    s_rho:positive = "up";
    s_rho:standard_name = "ocean_s_coordinate_g1";
    s_rho:formula_terms = "s:s_rho C:Cs_r eta:zeta depth:h
                           depth_c:hc"

Web Mapping Service

(OGC WMS)

• Simple HTTP interface for requesting geo-registered map images
• A WMS request defines the geographic layer(s) and area of interest to be processed
• The response to the request is one or more geo-registered map images (returned as JPEG, PNG, etc)

ERDDAP

The data server that the community is demanding

• Flexible outputs: .html table, ESRI .asc and .csv, Google Earth .kml, OPeNDAP binary, .mat, .nc, ODV .txt, .csv, .tsv, .json, and .xhtml
• Free RESTful API to access the data
• Standardize dates and time in the results
• Server-side searching and slicing

There are many moving parts

Catalog Service for the Web

(CSW)

• A single source to find endpoints
• Nice python interface:
  owslib.csw.CatalogueServiceWeb
• Advanced filtering:
  owslib.fes

Harvesting

Finding the web services

>>> from geolinks import sniff_link
>>> sniff_link('http://host/wms?service=SOS')
'OGC:SOS'
>>> sniff_link('http://host/wms?service=OPeNDAP:OPeNDAP')
'OPeNDAP:OPeNDAP'
>>> sniff_link('http://host/wms?service=WMS')
'OGC:WMS'
>>> sniff_link('http://host/data/roads.kmz')
'OGC:KML'
>>> sniff_link('http://host/data/roads.kml')
'OGC:KML'

Putting it all together: NHC

Meteorological stations in a National Hurricane Center path prediction.

Putting it all together: Model skill

Modeled Significant Wave Height skill

Putting it all together: ERDDAP App

Finally the title notebook!

SECOORA Portal

Summary

• Standards, web services and catalogs allow us to serve data in a unified way
• Python powered Jupyter gives us a powerful scientific, analysis and visualization environment to fetch
• Widgets allow for fancy data exploration

Questions?

(ocefpaf)

… g-mail, google+, etc.

https://ocefpaf.github.io/2018-SciPy-talk
